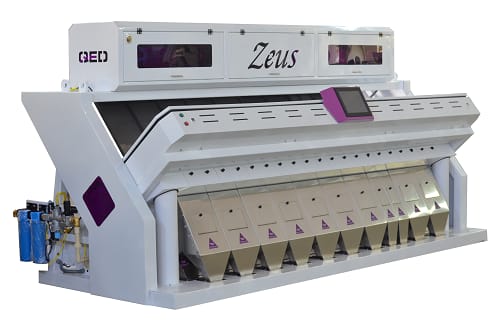

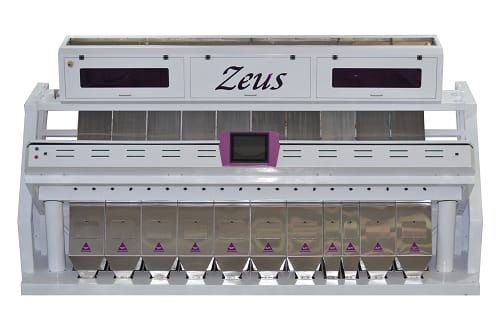

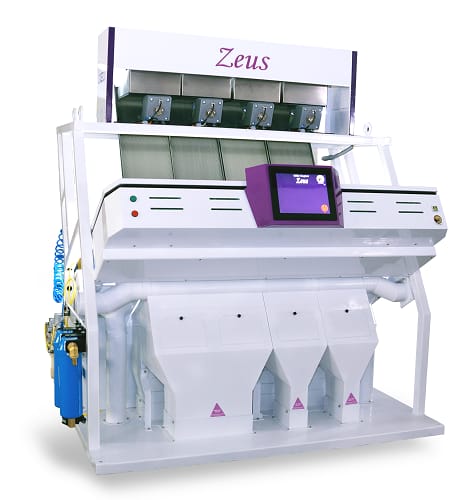

ZEUS SORTER

Self-cognitive Trichromatic Camera with 16200 Pixels for accurate detection

Fast response ejectors with life of more than 5 billion cycles

Image capture feature to anatomize the impure materials

4-time sorting (Optional) and online reverse sorting for better carry-over ratio and rejection

12” Touch Screen with User friendly UI

Ground-breaking CTB Based colour mapping technology to reject desired materials.

IMAGING SYSTEM

Self cognitive Trichromatic Camera with 16200-pixels for rapid scanning and with low distortion.

Imported Nikon lens for Crisp and Clear Imaging.

Dual scanning for micron level detection of defects.

TECHNOLOGY

Imported FPGA with Ingenious Image processing software and online reverse sorting.

Ground-breaking CTB Based colour mapping technology to reject desired materials.

Japanese high luminous LEDs with lifetime of over 50000hrs with control through touch screen.

USER INTERFACE

12” Industrial grade colour touch screen with easy and user -friendly Graphical user interface.

Image capture system to anatomize the material for better sorting quality.

Facility to store and recall more than 250 different types of settings.

PNEUMATIC SYSTEMS

German made Jet / Italy made matrix / Qtech ejector valves with more than 1000 firings/sec.

Ejectors with the life span of more than 5 billion cycles.

Proprietary Nozzles for meticulous rejection of materials.

Autonomous Air injection and release mechanism to preserve the ejectors.

Large Air reservoir for consistent air injection.

FEED SYSTEM

State-of-art vibratory systems with uniform frequency and consistency to get proper singulation.

Input availability monitoring feedback sensor to prevent feeder running with empty hopper.

The high precision lengthy chutes which are anodised for a smooth flow of materials.

Optional thermostat temperature-controlled chute heating system to ensure ease of grain.

Technical Specification

ZEUS - 126
ZEUS - 189
ZEUS - 252
ZEUS - 315
ZEUS - 378
ZEUS - 441
ZEUS - 504
ZEUS - 567

ZEUS - 126

No. of Channels

Main : 63 R1 : 32 R2 : 31

Power

3KVA

Air Compressor (Screw type)

60CFM / 7.0BAR

Dimension (LxWxH) in mm

1365X1600X2045

ZEUS - 189

No. of Channels

Main : 95 R1 : 63 R2 : 31

Power

3KVA

Air Compressor (Screw type)

60CFM / 7.0BAR

Dimension (LxWxH) in mm

1660X1600X2045

ZEUS - 252

No. of Channels

Main : 158 R1 : 63 R2 : 31

Power

5KVA

Air Compressor (Screw type)

80CFM / 7.0BAR

Dimension (LxWxH) in mm

1960X1600X2045

ZEUS - 315

No. of Channels

Main : 189 R1 : 94 R2 : 32

Power

5KVA

Air Compressor (Screw type)

100CFM / 7.0BAR

Dimension (LxWxH) in mm

2363X1600X2045

ZEUS - 378

No. of Channels

Main : 220 R1 : 95 R2 : 63

Power

5KVA

Air Compressor (Screw type)

120CFM / 7.0BAR

Dimension (LxWxH) in mm

3118X1600X2045

ZEUS - 441

No. of Channels

Main : 252 R1 : 126 R2 : 63

Power

5KVA

Air Compressor (Screw type)

120CFM / 7.0BAR

Dimension (LxWxH) in mm

3118X1600X2045

ZEUS - 504

No. of Channels

Main : 315 R1 : 126 R2 : 63

Power

7.5KVA

Air Compressor (Screw type)

180CFM / 7.0BAR

Dimension (LxWxH) in mm

3748X1600X2045

ZEUS - 567

No. of Channels

Main : 346 R1 : 158 R2 : 63

Power

7.5KVA

Air Compressor (Screw type)

200CFM / 7.0BAR

Dimension (LxWxH) in mm

3748X1600X2045
