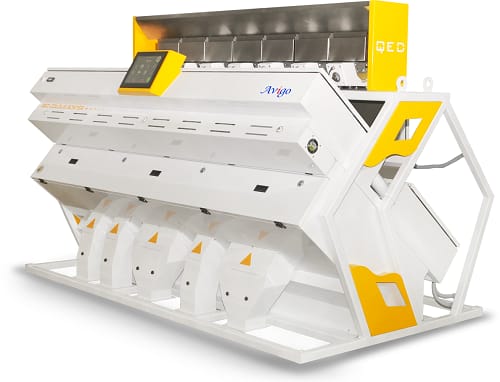

AVIGO PULSES SORTER

CAMERA: PRECISE DEFECT IDENTIFICATION

UHD Trichromatic Camera with 16200pixel lens with rapid scanning, very Low distortion

Dual scanning to provide high accuracy for better output.

Imported Nikon lens to get the high definition images.

TECHNOLOGY: IMAGE PROCESSING

High speed processors with advanced image processing software for greater quality and output.

The images detected by the trichromatic cameras are almost close to human eye and thereby allowing the user to select the colour to be rejected.

New and improved CTB Based technology to reject desired materials.

Auto calibrating cameras for high definition output.

USER INTERFACE

12” industrial grade colour touch screen with easy and user -friendly Graphical user interface.

Image capturing system to analyse the material for better sorting quality.

Remote access settings (Optional)

Facility to store and recall more than 250 different type of settings.

FEEDING SYSTEM

World class vibratory systems are installed in the machine which can produce uniform frequency and consistency to get proper singulation.

CHUTES

The high precision chutes which are anodised for a smooth flow of materials.

Excellent flow of material with singulation and durability.

EJECTION SYSTEMS

High speed ejector gives accurate sorting with a good rejection ratio.

The response time is faster than 1000 firings/sec.

The long-life ejectors, valves life can be extended by servicing / replacing the parts.

Valves having more than 5 billion life cycles.

SORTING EFFICIENCY

Double accept tube is provided to enhance sorting performances in getting good accept and rejects quality.

RELIABILITY

CE, UL certified high standard power supplies and components are used in the machine.

Wide service network with trained engineers and spares.

Technical Specification

ZEUS - 126
ZEUS - 189
ZEUS - 252
ZEUS - 315
ZEUS - 378
ZEUS - 441
ZEUS - 504
ZEUS - 567

ZEUS - 126

No. of Channels

Main : 63 R1 : 32 R2 : 31

Power

3KVA

Air Compressor (Screw type)

60CFM / 7.0BAR

Dimension (LxWxH) in mm

1504X1580X1820

ZEUS - 189

No. of Channels

Main : 95 R1 : 63 R2 : 31

Power

3KVA

Air Compressor (Screw type)

60CFM / 7.0BAR

Dimension (LxWxH) in mm

1804X1580X1820

ZEUS - 252

No. of Channels

Main : 158 R1 : 63 R2 : 31

Power

5KVA

Air Compressor (Screw type)

80CFM / 7.0BAR

Dimension (LxWxH) in mm

1804X1580X1820

ZEUS - 315

No. of Channels

Main : 189 R1 : 94 R2 : 32

Power

5KVA

Air Compressor (Screw type)

100CFM / 7.0BAR

Dimension (LxWxH) in mm

2208X1580X1820

ZEUS - 378

No. of Channels

Main : 220 R1 : 95 R2 : 63

Power

5KVA

Air Compressor (Screw type)

120CFM / 7.0BAR

Dimension (LxWxH) in mm

2808X1580X1820

ZEUS - 441

No. of Channels

Main : 252 R1 : 126 R2 : 63

Power

5KVA

Air Compressor (Screw type)

120CFM / 7.0BAR

Dimension (LxWxH) in mm

2808X1580X1820

ZEUS - 504

No. of Channels

Main : 315 R1 : 126 R2 : 63

Power

7.5KVA

Air Compressor (Screw type)

160CFM / 7.0BAR

Dimension (LxWxH) in mm

3440X1580X1820

ZEUS - 567

No. of Channels

Main : 346 R1 : 158 R2 : 63

Power

7.5KVA

Air Compressor (Screw type)

200CFM / 7.0BAR

Dimension (LxWxH) in mm

3440X1580X1820
